Crystal Substrates > Si (111) - Silicon

Substrate Specifications

  • Material: Silicon (111)
  • Size: 10×10×0.5 mm
  • Orientation: (111)
  • Structure: Diamond Cubic
  • Lattice Constant: a = 5.43 Å
  • Type/Dopant: N Type/undoped
  • Growth Method: Czochralski
  • Melting Temperature: 1414˚C
  • Debye Temperature (at 27˚C): 370˚C [Ref. 6]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
  • Model: BDL800IR
  • UHV Treatment: Annealing at 720˚C (estimated temperature of sample) for 2 minutes
  • Applications: Solid state devices, microelectronics, lasers, and in solar panels

LEED Patterns

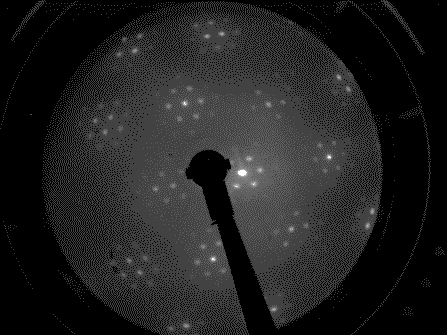

Si (111) - LEED Pattern 80eV
Si (111) - LEED Pattern 80eV

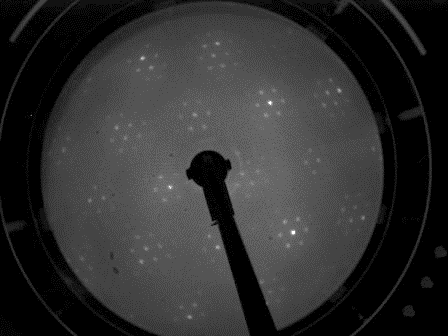

Si (111) - LEED Pattern 110eV
Si (111) - LEED Pattern 110eV

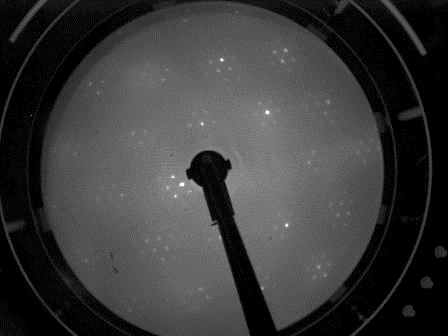

Si (111) - LEED Pattern 145eV
Si (111) - LEED Pattern 145eV

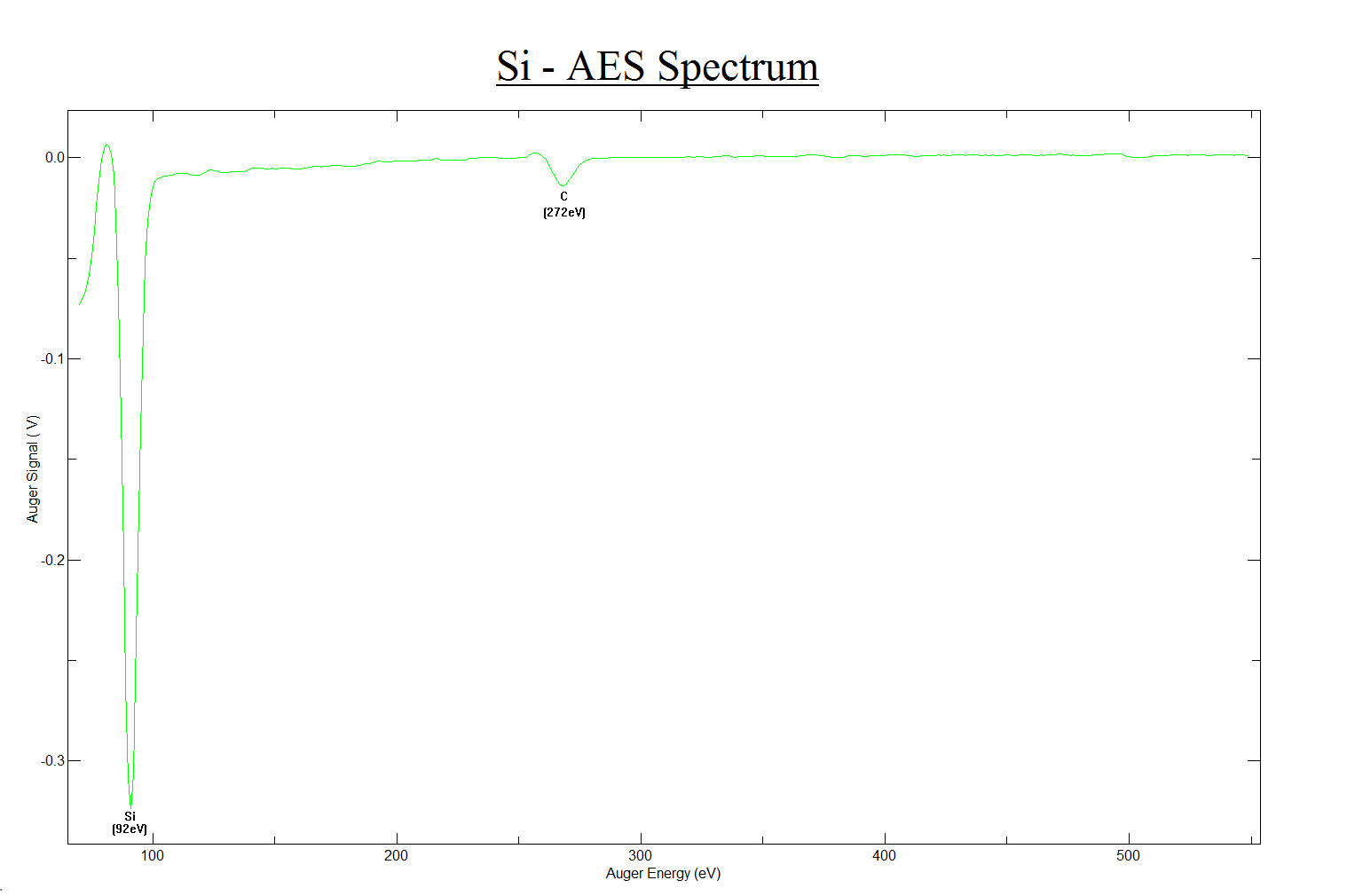

Si (111) - AES Spectrum

Si (111) - AES Spectrum
Si - AES Spectrum
