Thin Film Deposition for UHV Systems

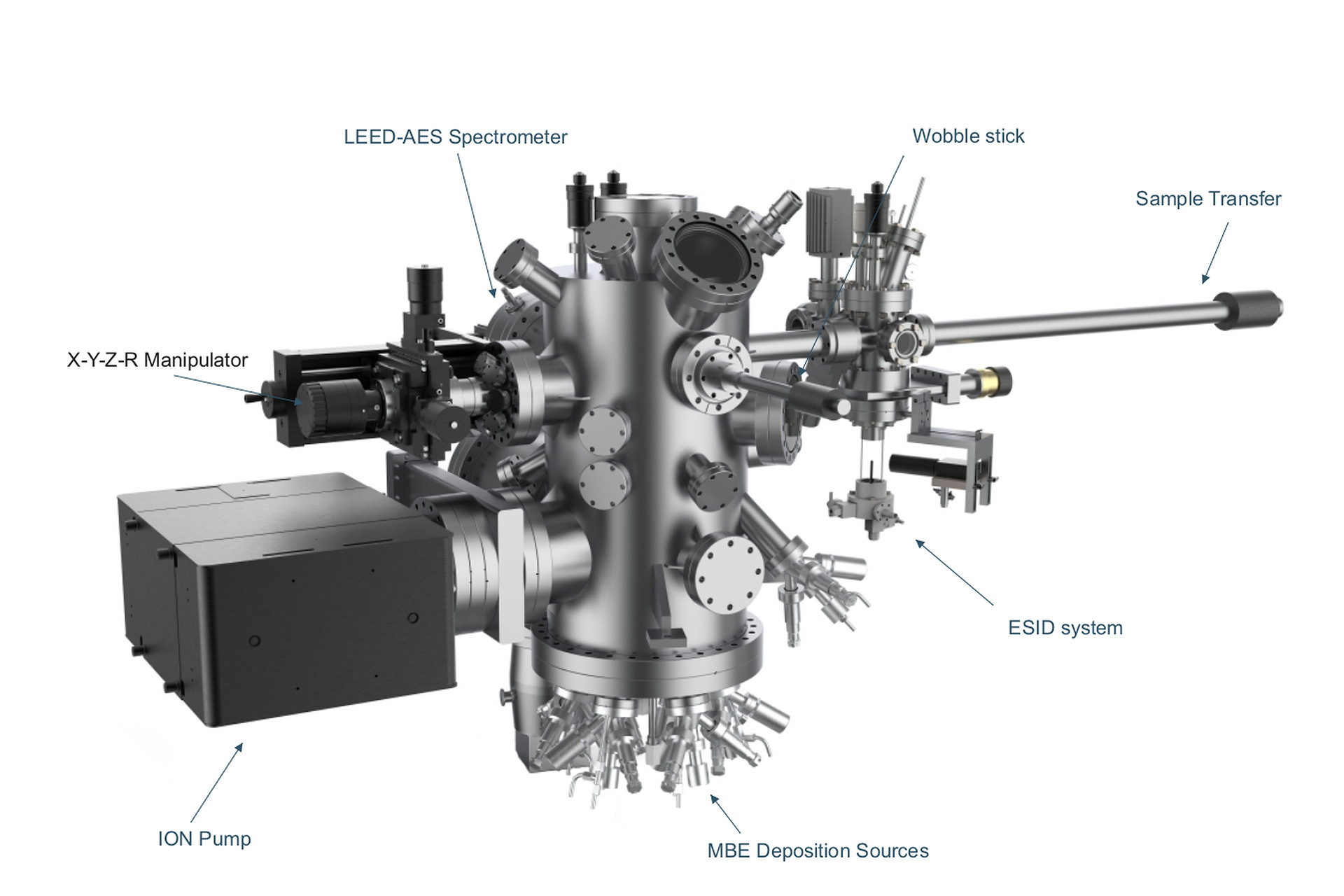

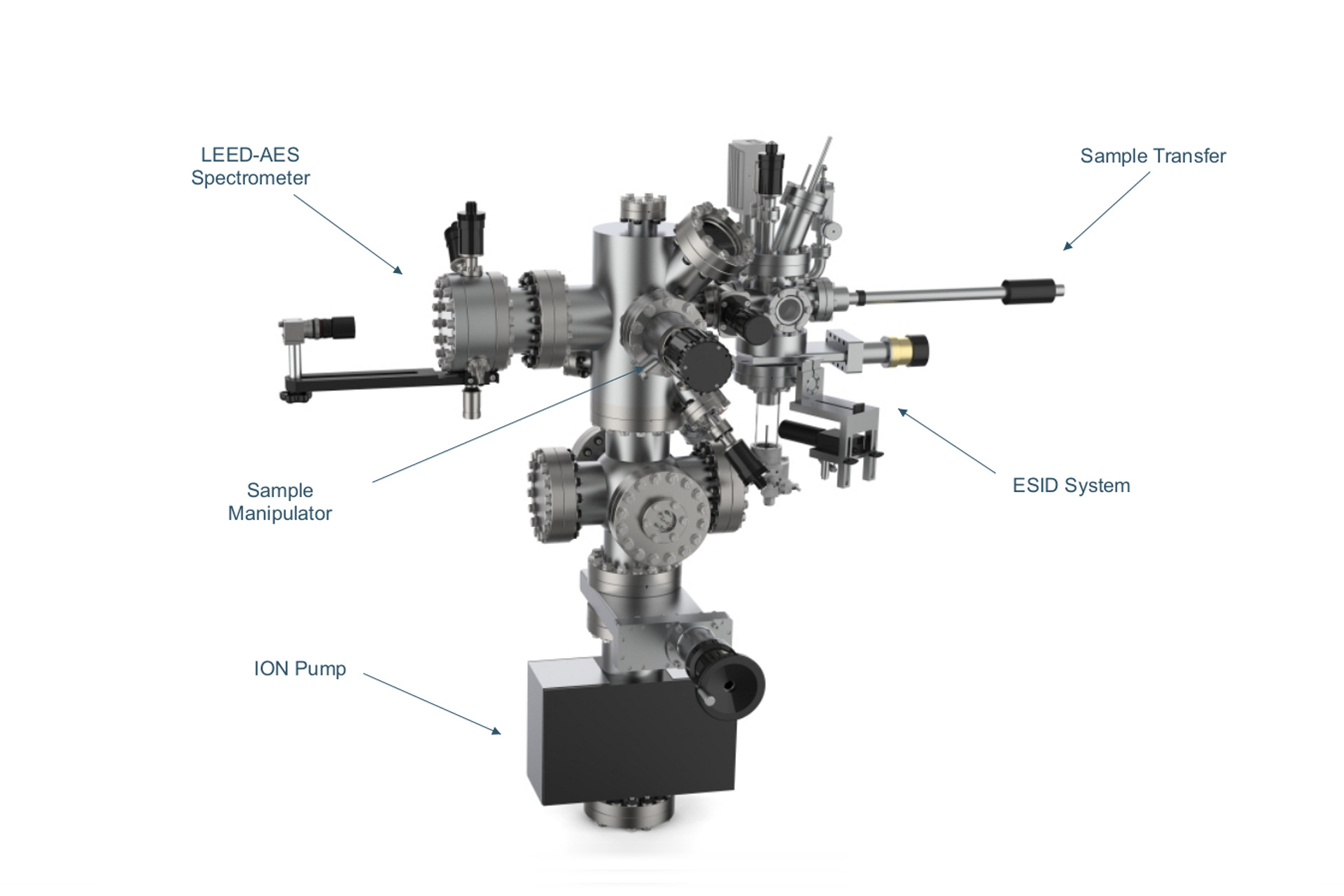

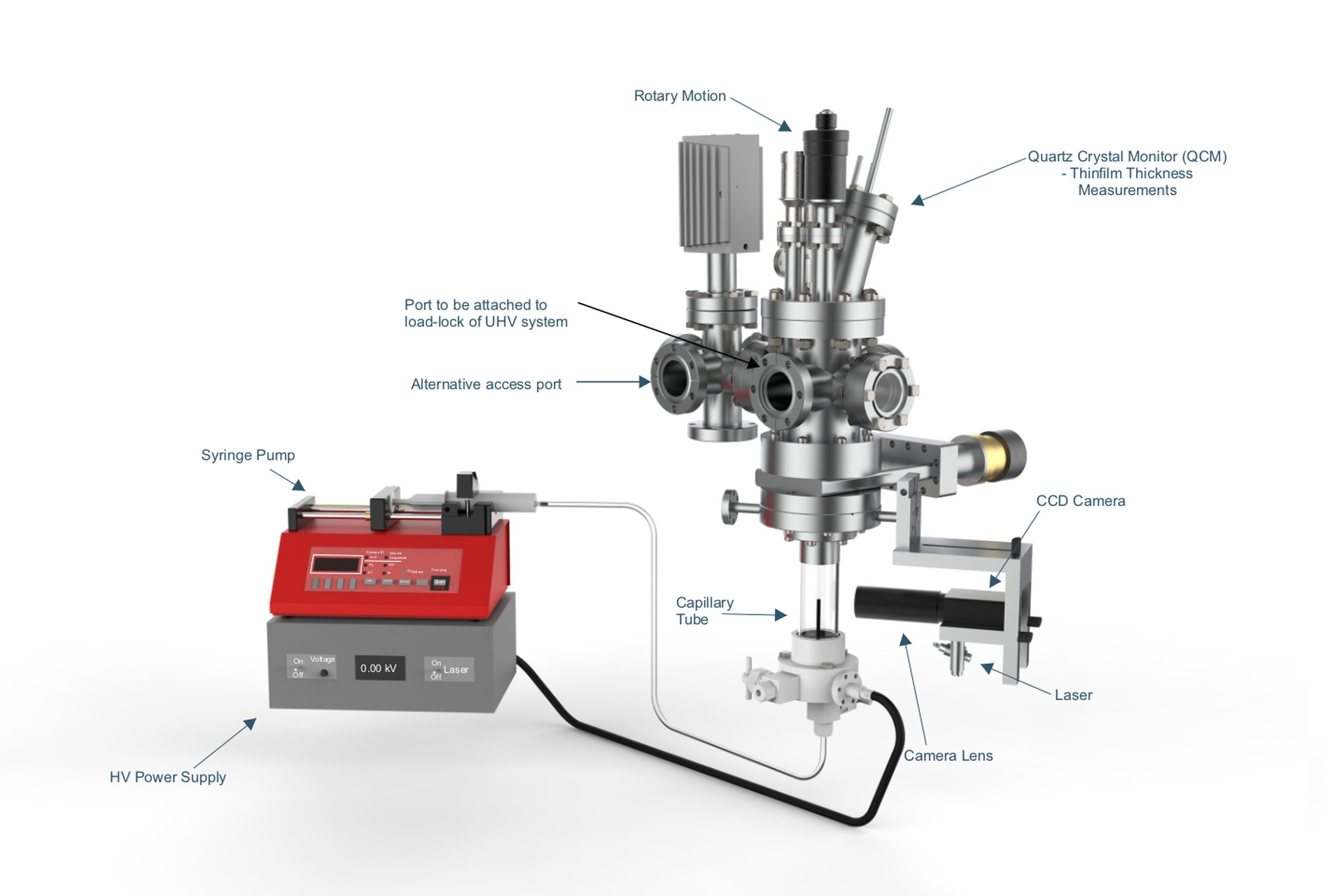

Electrospray Ionization Deposition System with UHV Compatibility for Growing Nanofilms

Model: ESID-UHV-75

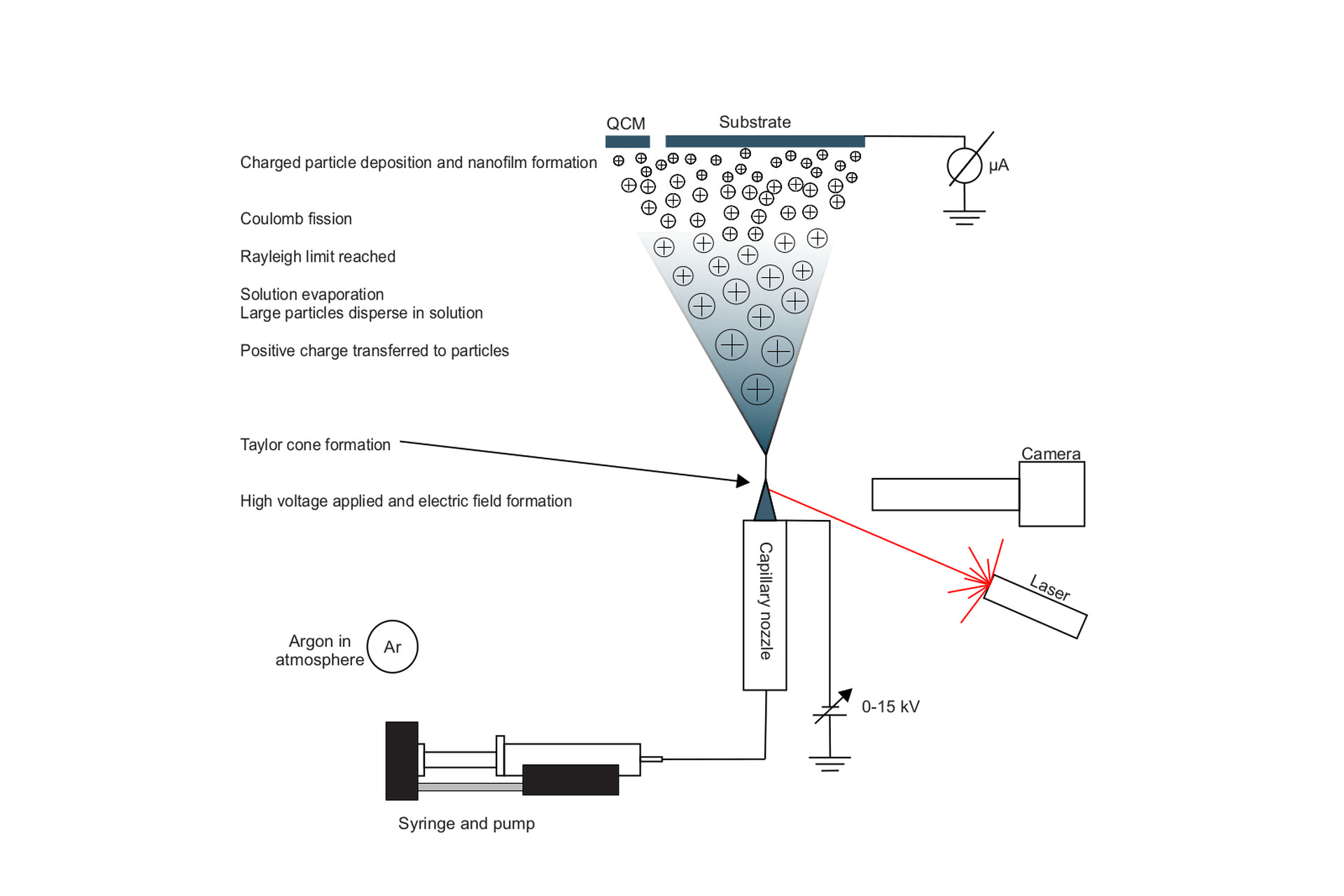

Principle of Electrospray Ionization Deposition

The electrospray ionization deposition method (ESID) is based on the atomic dispersion of fluid that contains molecules or nano-articles under high electric field onto a substrate. The spray nozzle is connected to a high-voltage power supply while the target substrate is grounded. This creates a potential difference and therefore, a strong electric field which builds up at the end of the nozzle which forms a Taylor cone. The Taylor cone then deforms into a jet at the tip and disperses into a fine mist. Within the mist there are charged clusters that deposit onto the substrate due to ionic attraction which form a nanofilm. (For illustration of the above, see Figure 2.)

During the fluid dispersion, there are several processes occurring such as Taylor cone formation, charge transfer, solution evaporation, Coulomb fission, impact on the surface, nucleation, diffusion and nanofilm growth.


Brochure for Electrospray Ionization Deposition System w. UHV Compatibility, Model ESID-UHV-75 (PDF)

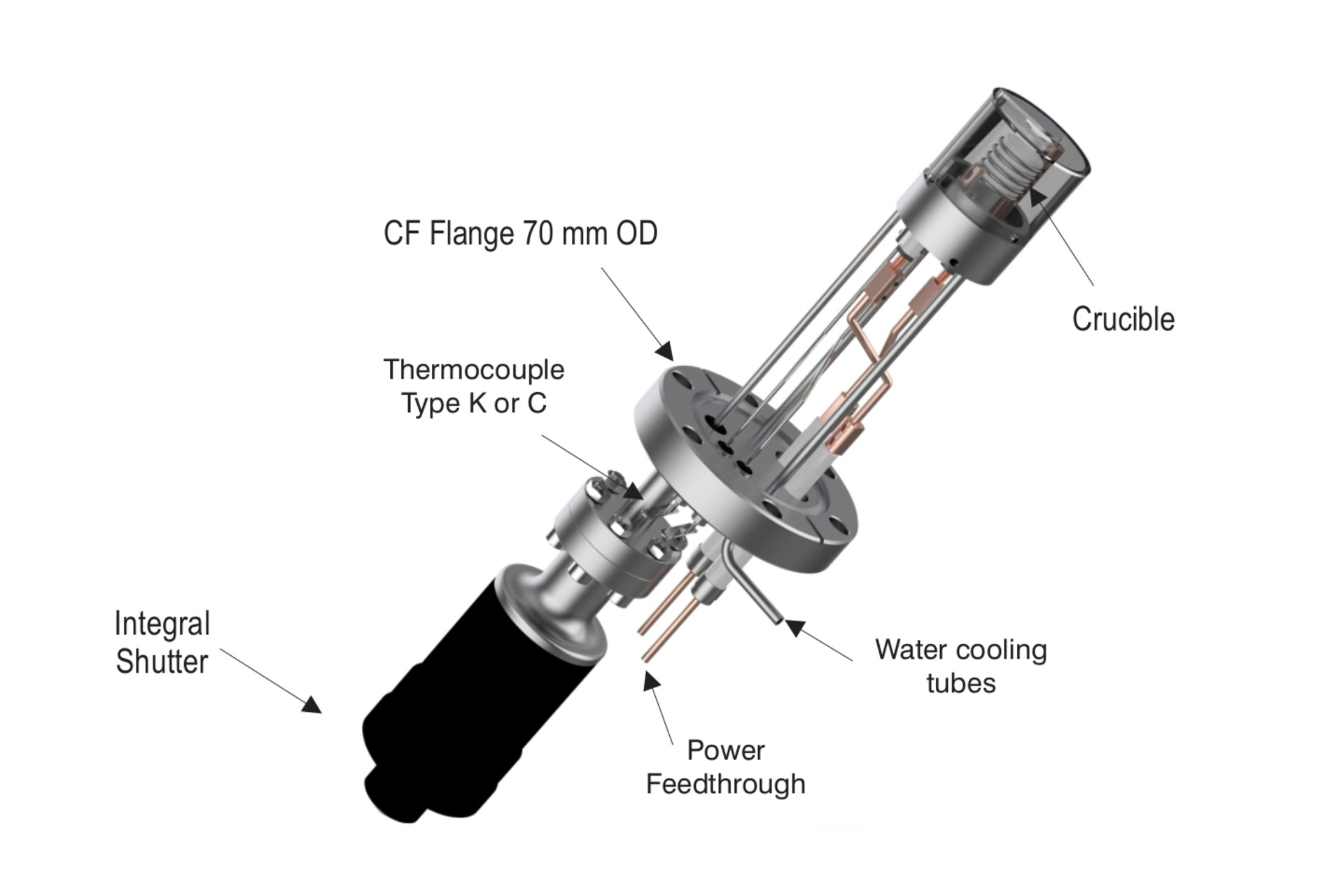

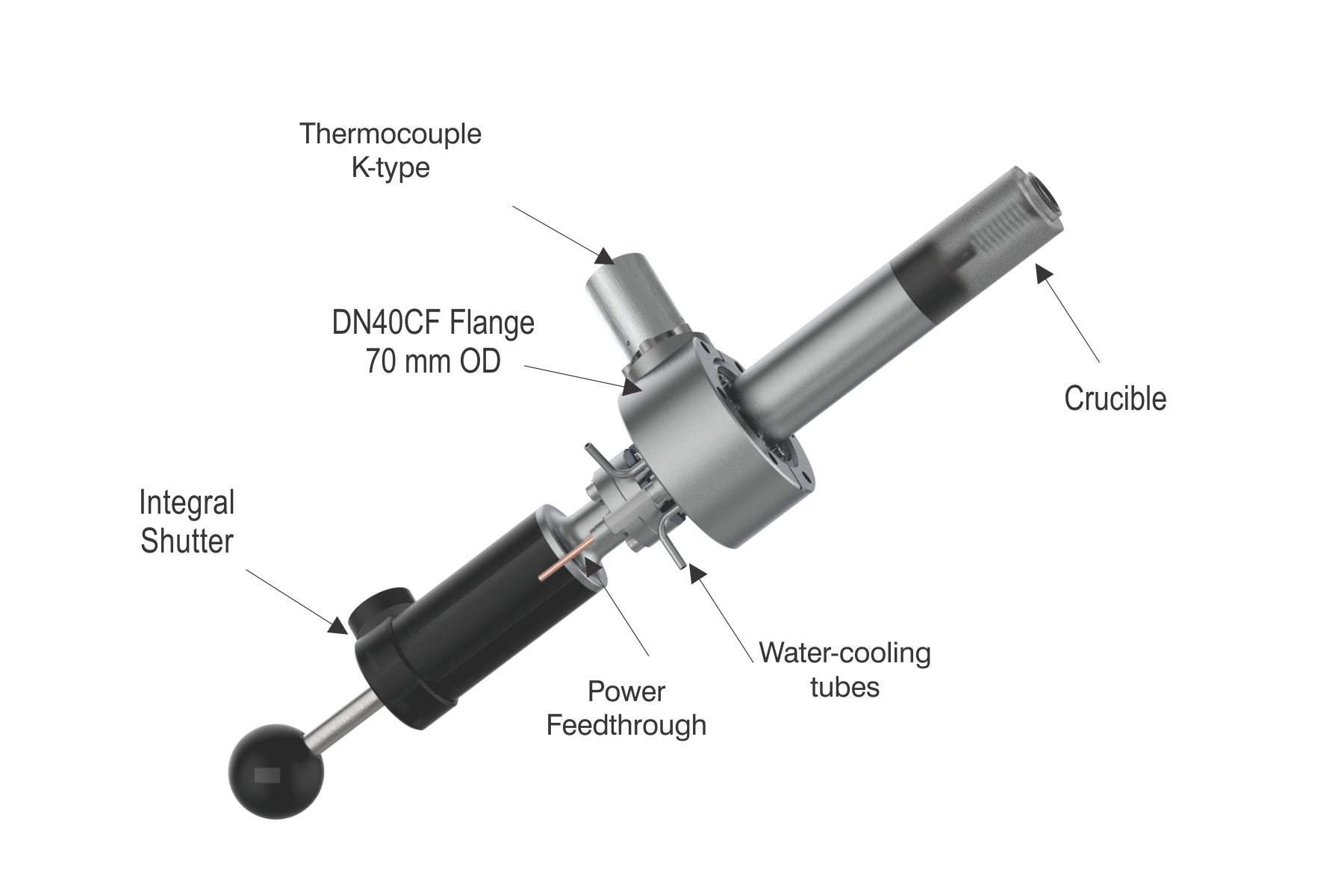

Effusion Cell

Model: Evap40


Effusion cell model Evap40 is a miniature vapor source of wide range solid state materials that are suitable for evaporation from crucible by thermal radiation from the surrounding tungsten heater.

The temperature range is from 50 °C to 1200 °C. It is designed for deposition of uniform thin films under ultra high vacuum conditions onto the substrate from sub-monolayer thickness to multilayered thin film.


Brochure for Effusion Cell, Model Evap40 (PDF)


  • Mounting flange: DN40CF with 100 mm vacuum insertion length, 34 mm O.D. insertion length and 34 mm O.D.
  • Water cooling: internal water flow reducing components outgassing
  • Filament: Tungsten filament heater with current range 0-20 A
  • Evaporating Source Crucibles: BN, Quartz, Alumina Ma, Ta, W, and Graphite
  • Thermocouple: K or C type
  • Crucible materials: Ma, Ta, W, Graphite
  • Liner Material options: BN, Quartz, Alumina
  • Shutter: integral manual shutter

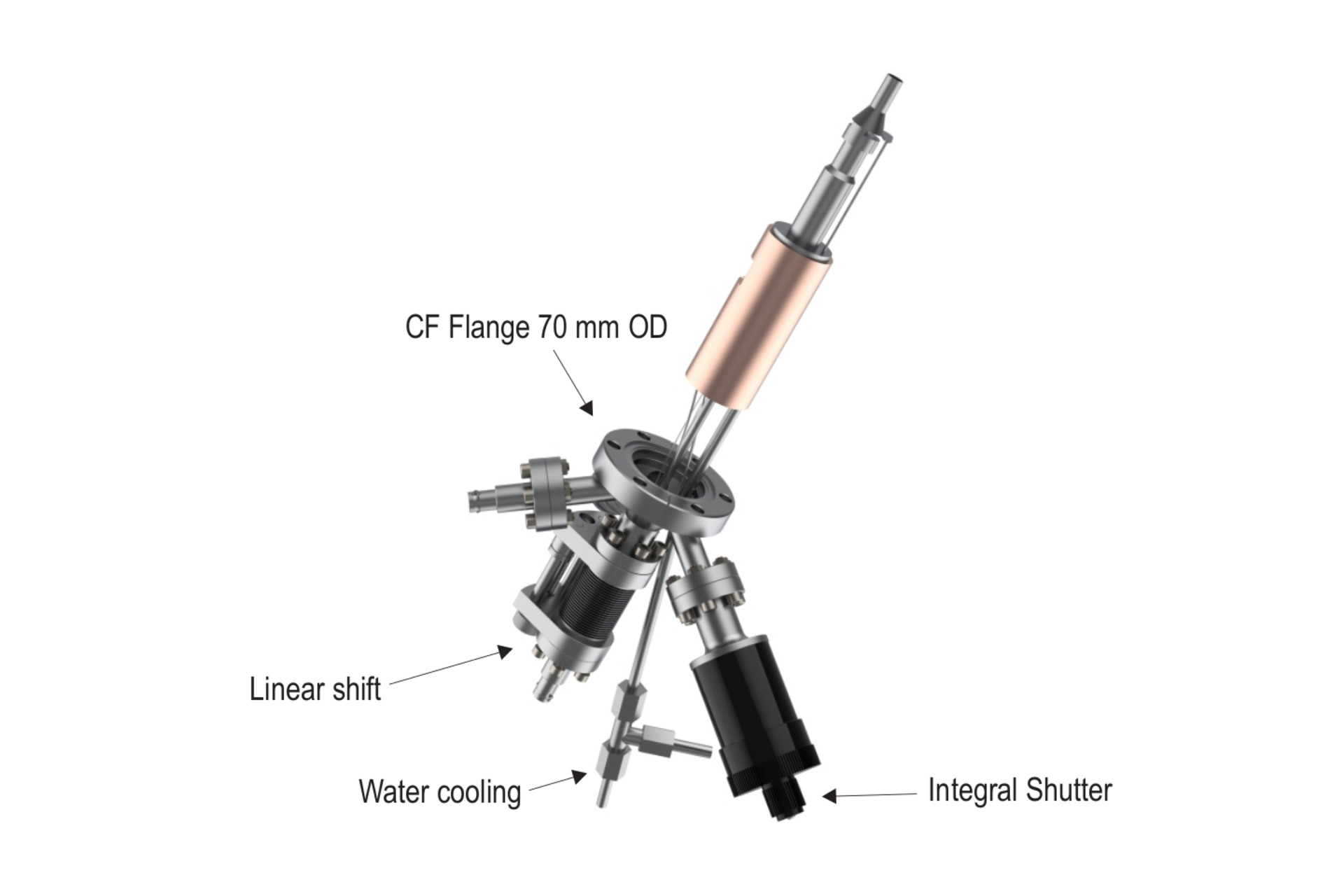

Electron Beam Evaporator

Model: EB-Evap40


The electron beam evaporator, model EB-Evap 40 is a compact vapour source of almost any solid state material that is needed for deposition of thin film on substrate.

The temperature range for material evaporation is from 100 °C to 2300 °C. Evaporation is directly from 2 mm diameter rod or indirectly from the small crucible.

The unit is very compact and suitable for any UHV system.


Brochure for Electron Beam Evaporator, Model EB-Evap40 (PDF)


  • Mounting flange: DN40CF with 190 mm vacuum insertion length and 35 mm O.D.
  • Water cooling: internal water flow reducing components outgassing.
  • Filament: Tungsten filament with range 2- 2.4 A.
  • Voltage range: 0 - 1500 V.
  • Evaporating Source: Rod 2 mm diameter with 25 mm wire feed range.
  • Crucible materials: Ma, Ta, W, Graphite.
  • Liner Material options: BN, Quartz, Alumina.
  • Working distance: 50 mm – 100 mm range.
  • Shutter: integral manual shutter.
