Crystal Substrates > Ga2O3-β (201) - Gallium Oxide

  • Material: Gallium Oxide
  • Size: 10×10×0.5 mm
  • Orientation: (201 ± 0.7˚)
  • Structure: Monoclinic
  • Lattice Constant: a = 12.23Å, b = 3.04Å, c = 5.80Å
  • Type/Dopant: N type/ Sn-doped
  • Growth Method: Czochralski
  • Melting Temperature: 1900˚C
  • Debye Temperature: 600˚C [Ref. 3]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
    Model BDL800IR
  • UHV Treatment: Annealing at 520˚C (estimated temperature of sample) for 10 minutes
  • Applications: Emerging uses in sensors, power electronics and semiconductor electronics

LEED Patterns

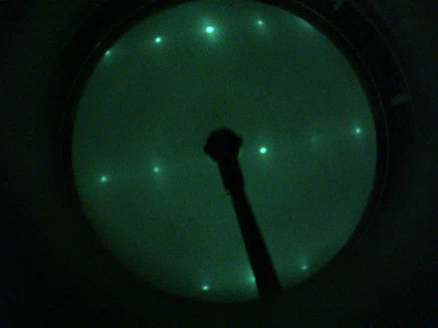

Ga2O3-β (201) - LEED Pattern 45eV
Ga2O3-β (201) - LEED Pattern 45eV

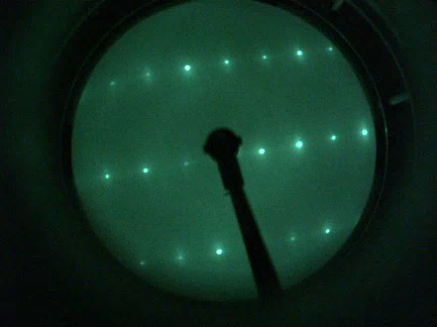

Ga2O3-β (201) - LEED Pattern 85eV
Ga2O3-β (201) - LEED Pattern 85eV

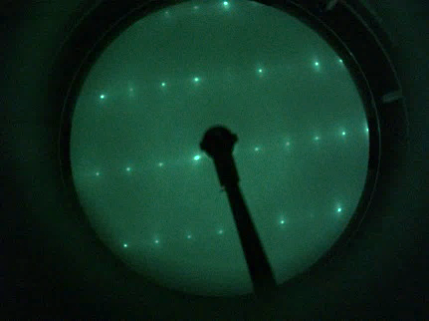

Ga2O3-β (201) - LEED Pattern 120eV
Ga2O3-β (201) - LEED Pattern 120eV

GaN - AES Spectrum

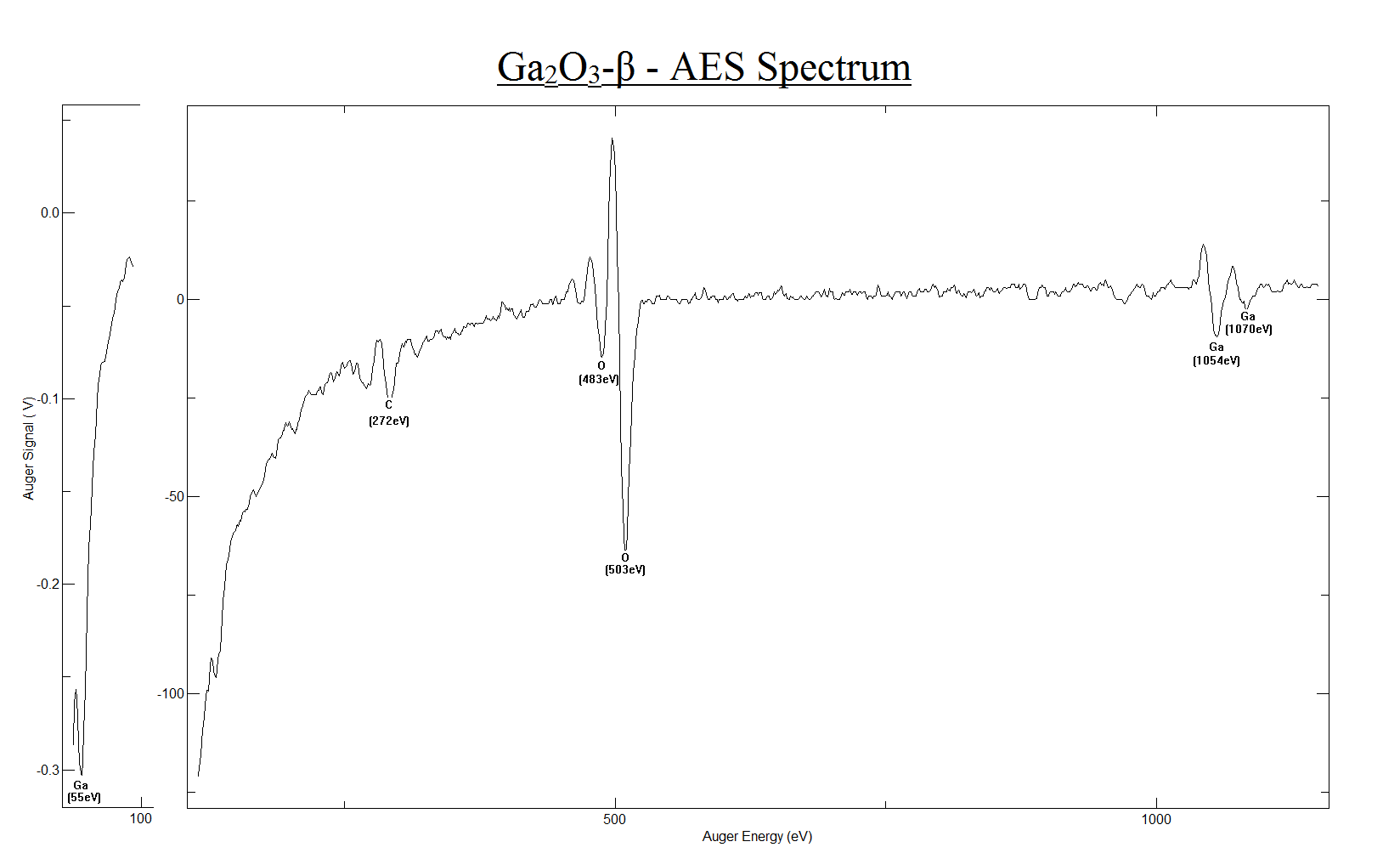

Ga2O3-β (201) - AES Spectrum
GaN - AES Spectrum
