Epitaxial Films on Substrates > GaN / AlN / Si (100) - Gallium Nitride with Aluminum Nitride on Silicon

Specifications

  • Material: Gallium Nitride (500 nm thickness with a 200 nm Aluminum Nitride buffer layer) on Silicon (111)
  • Size: 10 × 10 × 0.50 mm
  • Orientation: C-Plane (0.01)
  • Structure: Wurtzite
  • Lattice Constant: a = 3.19 Å
  • Type/Dopant: Undoped
  • Film Growth Method: Hydride Vapour Phase Epitaxy
  • Melting Temperature: 2500 °C
  • Debye Temperature (at 27 °C): 327 °C[Ref. 3]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
  • Model LEED 800
  • UHV Treatment: Annealing at 760 °C (estimated temp. of sample) for 10 minutes
  • Applications: Semiconductor electronics, LEDs, radars, and transistors

LEED Pattern - GaN overheated at 800˚C causing GaN layer to evaporate off exposing AlN layer

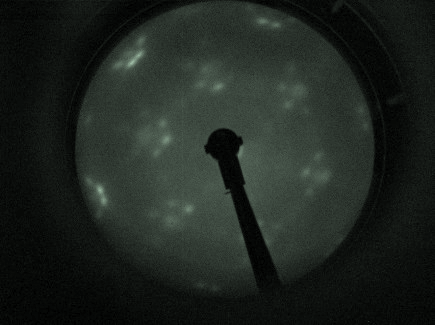

GaN AlN Si (100) - LEED Pattern 110 eV
GaN AlN Si (100) - LEED Pattern 110 eV

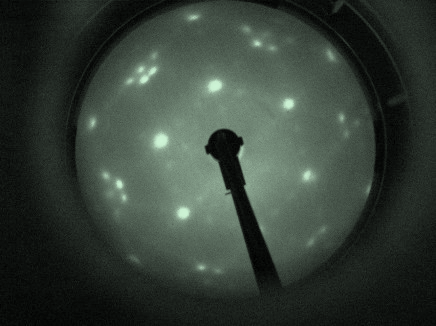

GaN AlN Si (100) - LEED Pattern 150 eV
GaN AlN Si (100) - LEED Pattern 150 eV

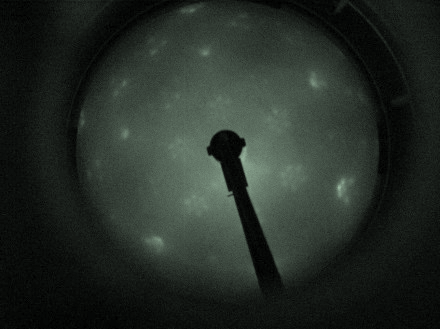

GaN AlN Si (100) - LEED Pattern 265 eV
GaN AlN Si (100) - LEED Pattern 265 eV

GaN / AlN / Si (100) - AES Spectrum

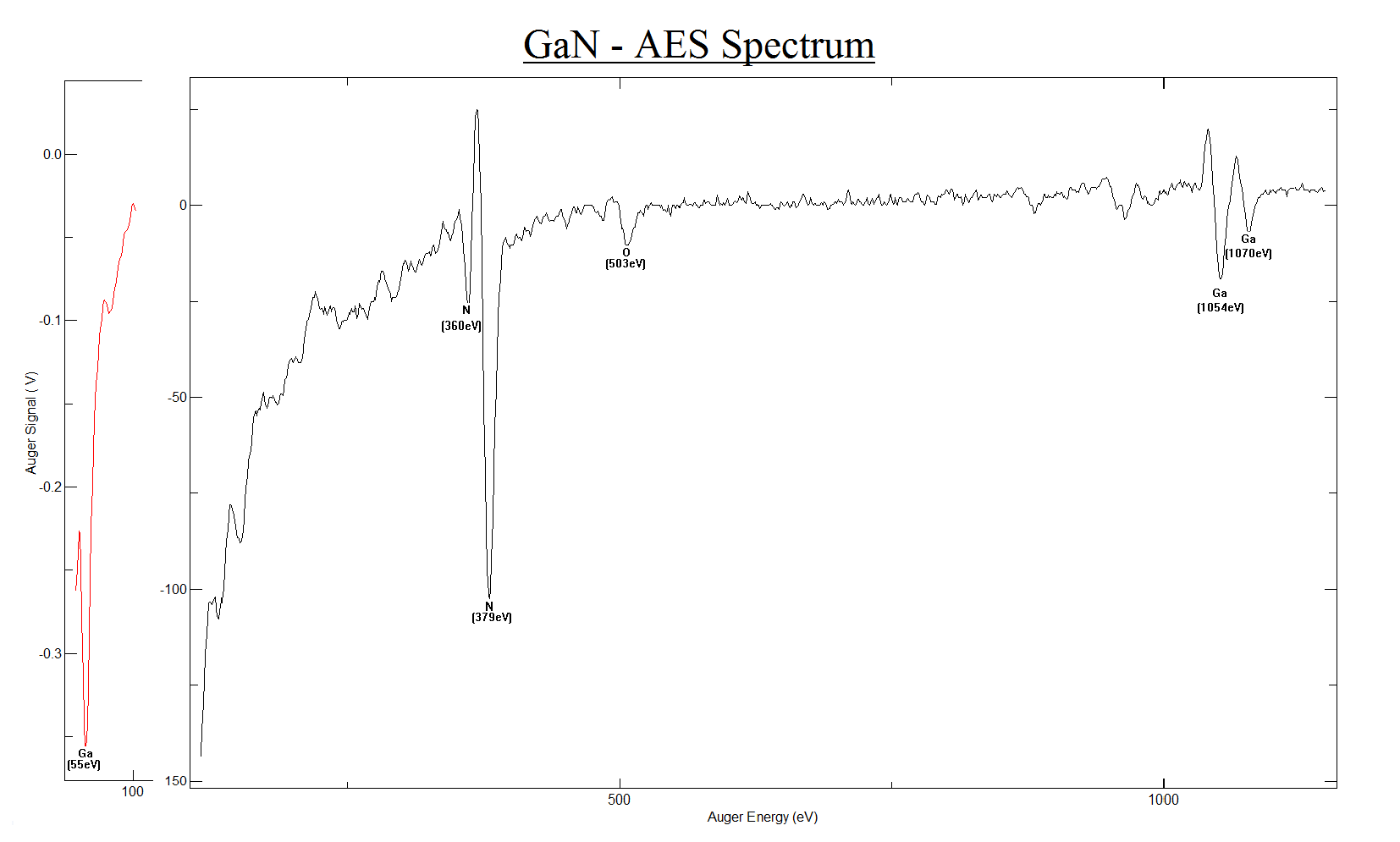

GaN - AES Spectrum
GaN - AES Spectrum
