Low Energy Electron Diffraction & Auger Electron Spectroscopy Data

Crystal Substrates > MgAl2O4 - Magnesium Dialuminium Oxide (Spinel)

  • Material: Magnesium Dialuminium Oxide
  • Size: 10 mm x 10 mm x 0.5 mm
  • Orientation: (100) with edge (100)
  • Structure: Cubic
  • Lattice Constant: a = 8.083 Å
  • Type/Dopant: Undoped
  • Growth Method: Czochralski
  • Melting Temperature: 2130 °C
  • Debye Temperature: Unpublished
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
    Model: BDL800IR
  • UHV Treatment: Annealing
  • Applications: bulk acoustic wave and microwave devices [Ref. 40]

LEED Patterns

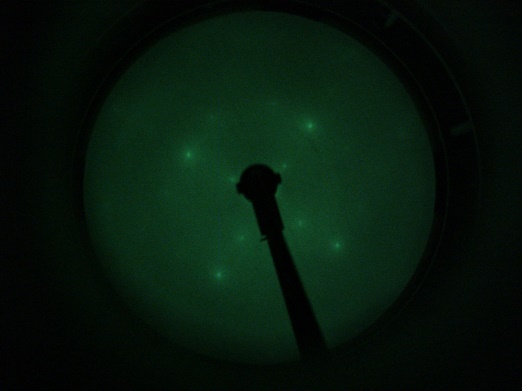

MgAl2O4 - LEED Pattern 115 eV
MgAl2O4 - LEED Pattern 115 eV

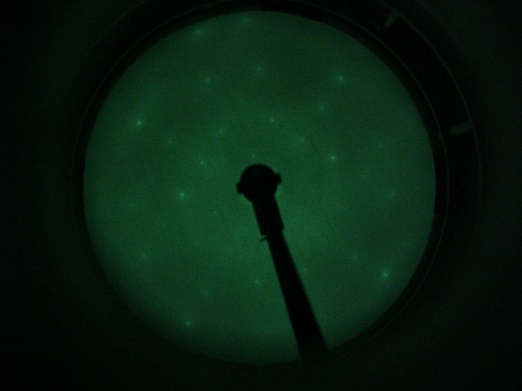

MgAl2O4 - LEED Pattern 165 eV
MgAl2O4 - LEED Pattern 165 eV

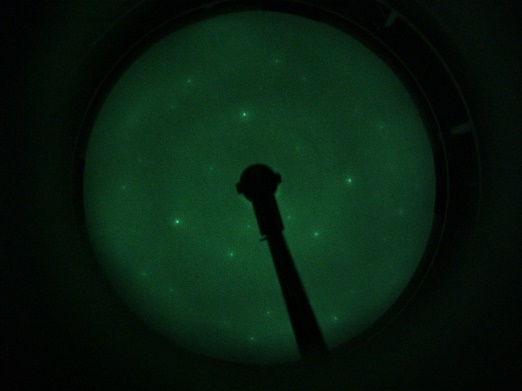

MgAl2O4 - LEED Pattern 225 eV
MgAl2O4 - LEED Pattern 225 eV
