Low Energy Electron Diffraction & Auger Electron Spectroscopy Data

Crystal Substrates > YIG - Yttrium Iron Garnet #2

Substrate Specifications

  • Material: YIG
  • Size: 5 mm dia. X 0.5 mm
  • Orientation: (111)
  • Structure: Cubic
  • Lattice Constant: a=12.4 Å
  • Type/Dopant: Undoped
  • Growth Method: Floating zone
  • Melting Temperature: 1555 °C
  • Debye Temperature: 600 K [Ref. 32]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
    Model BDL800IR
  • UHV Treatment: Annealing
  • Applications: microwave, optical, magneto-optical applications [Ref. 33]

LEED Patterns

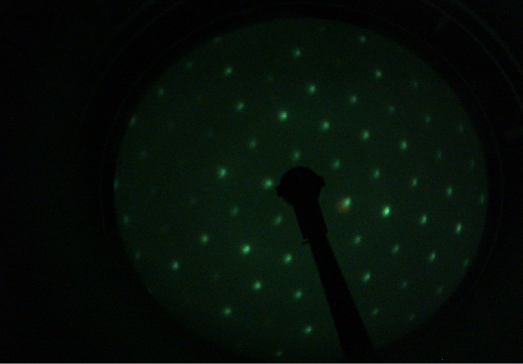

YIG - LEED Pattern 25 eV
YIG - LEED Pattern 25 eV

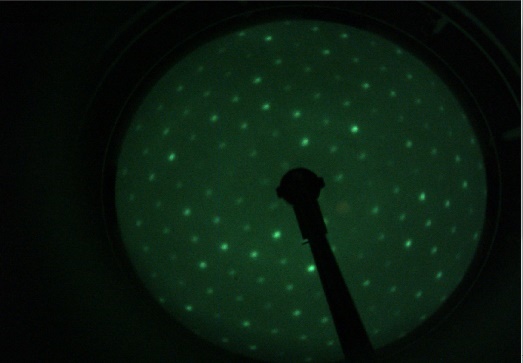

YIG - LEED Pattern 50 eV
YIG - LEED Pattern 50 eV

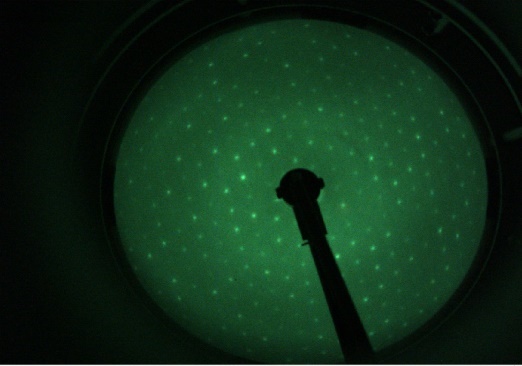

YIG - LEED Pattern 100 eV
YIG - LEED Pattern 100 eV
