Crystal Substrates > TiO2 - Titanium Dioxide

Substrate Specifications

  • Material: Titanium Dioxide (Rutile)
  • Size: 10 mm x 5 mm x 0.5 mm
  • Orientation: (110)
  • Structure: Tetragonal
  • Lattice Constant: a=4.593 Å c = 2.958 Å
  • Type/Dopant: Undoped
  • Growth Method: Floating Zone Method
  • Melting Temperature: 1840 °C
  • Debye Temperature (At Room Temperature): 541.85 °C [Ref. 14]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
    Model BDL800IR
  • UHV Treatment: Annealing at 693 °C
  • Applications: Optical components (ie. prisms and polarizing devices) and Epi thin film substrates

LEED Patterns

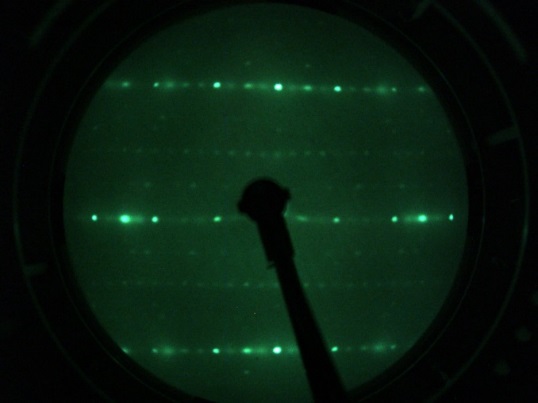

TiO2 (110) - LEED Pattern 60 eV
TiO2 (110) - LEED Pattern 60 eV

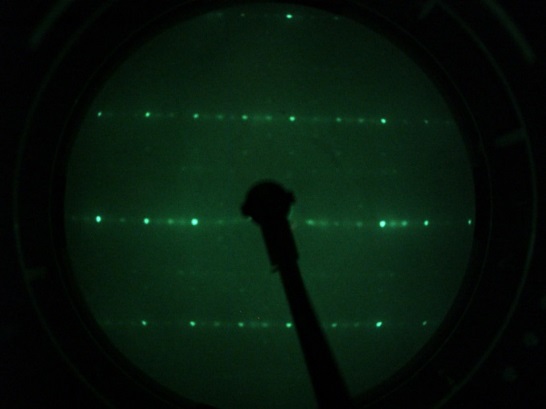

TiO2 (110) - LEED Pattern 100 eV
TiO2 (110) - LEED Pattern 100 eV

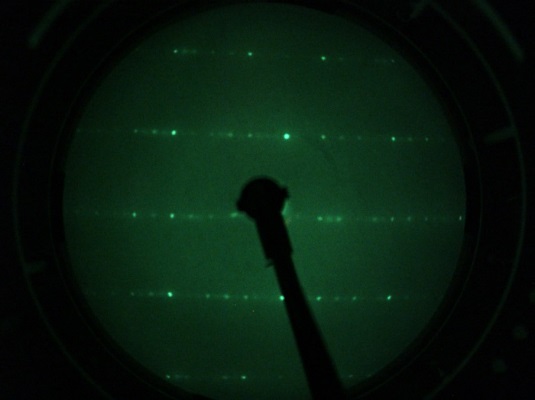

TiO2 (110) - LEED Pattern 160 eV
TiO2 (110) - LEED Pattern 160 eV

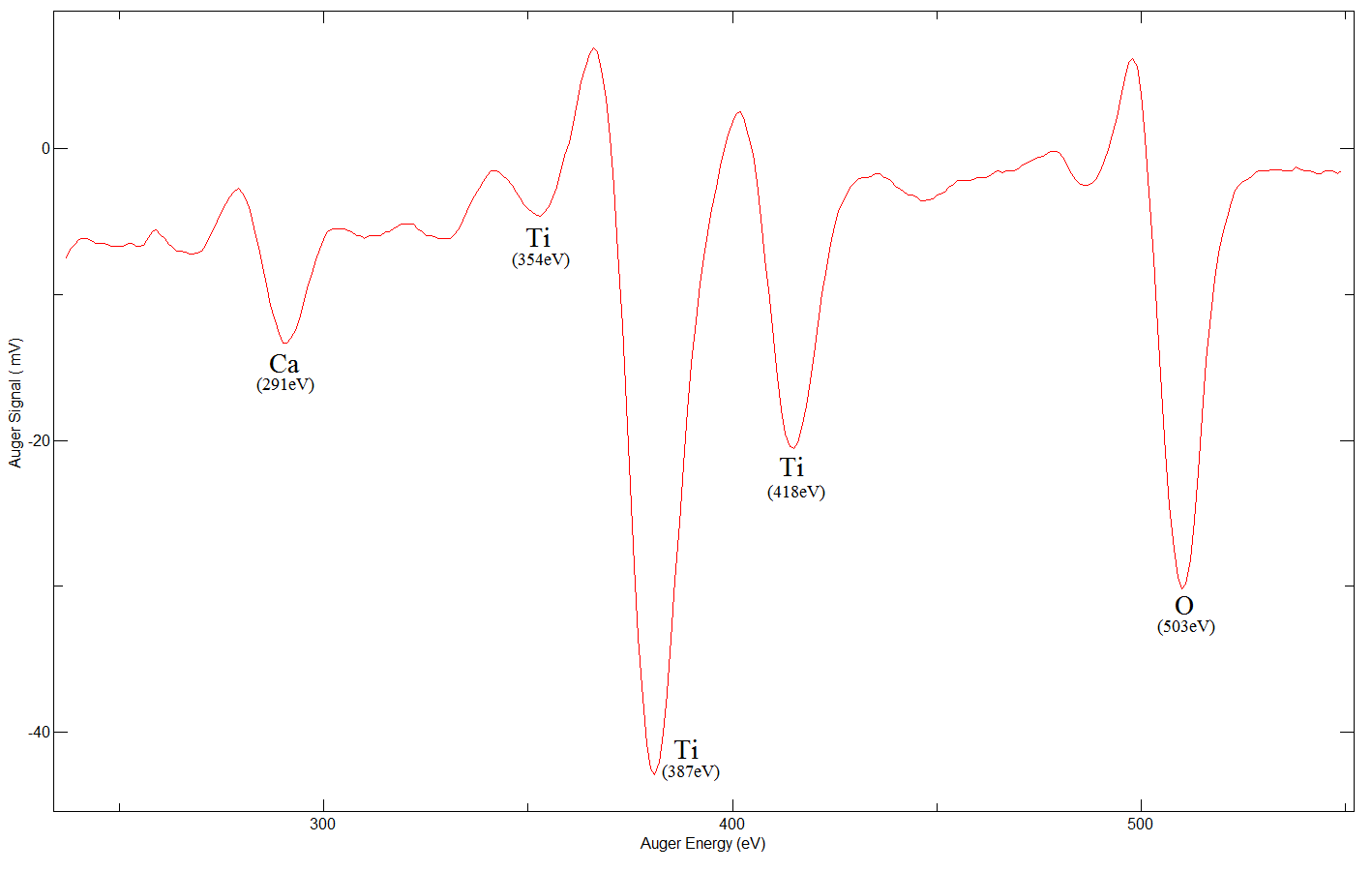

TiO2 (110) - AES Spectrum

TiO2 (110) - AES Spectrum
TiO2 (110) - AES Spectrum
