Crystal Substrates > SrTiO3 - Strontium Titanate #2

Substrate Specifications

  • Material: Strontium Titanate
  • Size: 10 mm x 10 mm x 0.5 mm
  • Orientation: (100) with edge (010)
  • Structure: Cubic
  • Lattice Constant: a=3.905 Å
  • Type/Dopant: undoped
  • Growth Method: Vernuil
  • Melting Temperature: 2080 °C
  • Debye Temperature: 639.5 K [Ref. 28]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
    Model BDL800IR
  • UHV Treatment: Annealing
  • Applications: used in field emission displays, magnetic field insensitive thermometers, and ultralow-temp scanning microscopes [Ref. 29]

LEED Patterns

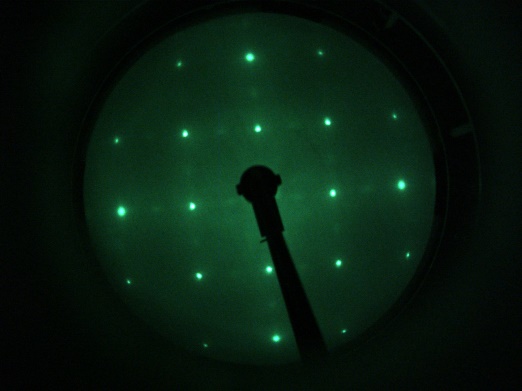

SrTiO<sub>3</sub> - LEED Pattern 95 eV
SrTiO3 - LEED Pattern 95 eV

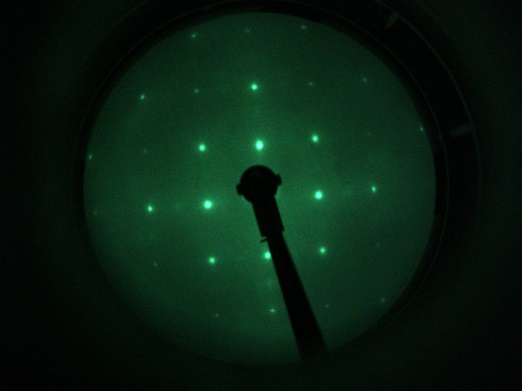

SrTiO<sub>3</sub> - LEED Pattern 150 eV
SrTiO3 - LEED Pattern 150 eV

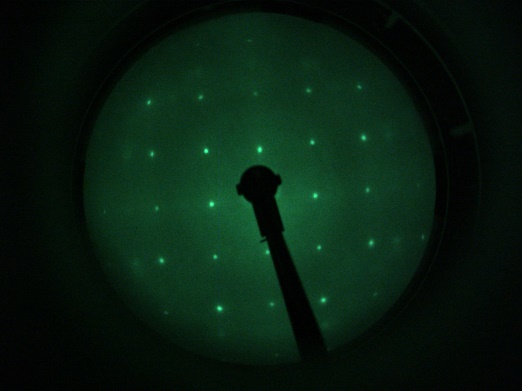

SrTiO<sub>3</sub> - LEED Pattern 170 eV
SrTiO3 - LEED Pattern 170 eV
