Crystal Substrates > LiNbO3 (0001) Stoichiometric - Stoichiometric Lithium Niobate

  • Material: LiNbO3 stoichiometric Z-cut
  • Size: 10 mm x 10 mm x 0.5 mm
  • Orientation: (0001)
  • Structure: Hexagonal
  • Lattice Constant: a=5.148 Å c=13.863 Å
  • Type/Dopant: Undoped
  • Growth Method: Unpublished
  • Melting Temperature: 1257 °C
  • Debye Temperature: 307.25 °C [Ref. 17]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
  • Model: BDL800IR
  • UHV Treatment: Annealing, deposition, sputtering
  • Applications: Laser frequency doubling, nonlinear optics, waveguide-based optical devices, surface acoustic wave devices, memory units and neuromorphic systems, and more optical applications [Ref. 18].

LEED Patterns

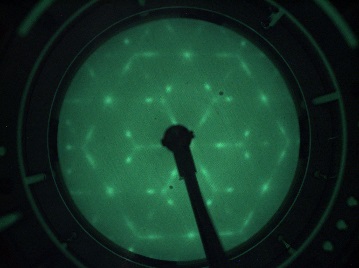

Stoich. LiNbO3 (0001) – LEED Pattern 65 eV after annealing at 825 °C
Stoich. LiNbO3 (0001) – LEED Pattern 65 eV after annealing at 825 °C

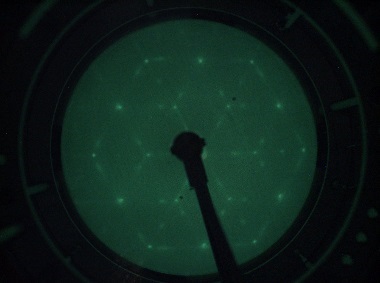

Stoich. LiNbO3 (0001) – LEED Pattern 65 eV after annealing at 850 °C
Stoich. LiNbO3 (0001) – LEED Pattern 65 eV after annealing at 850 °C

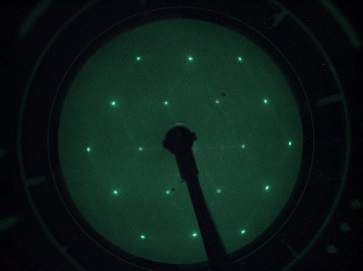

Stoich. LiNbO3 (0001) – LEED Pattern 65 eV after annealing at 875 °C
Stoich. LiNbO3 (0001) – LEED Pattern 65 eV after annealing at 875 °C

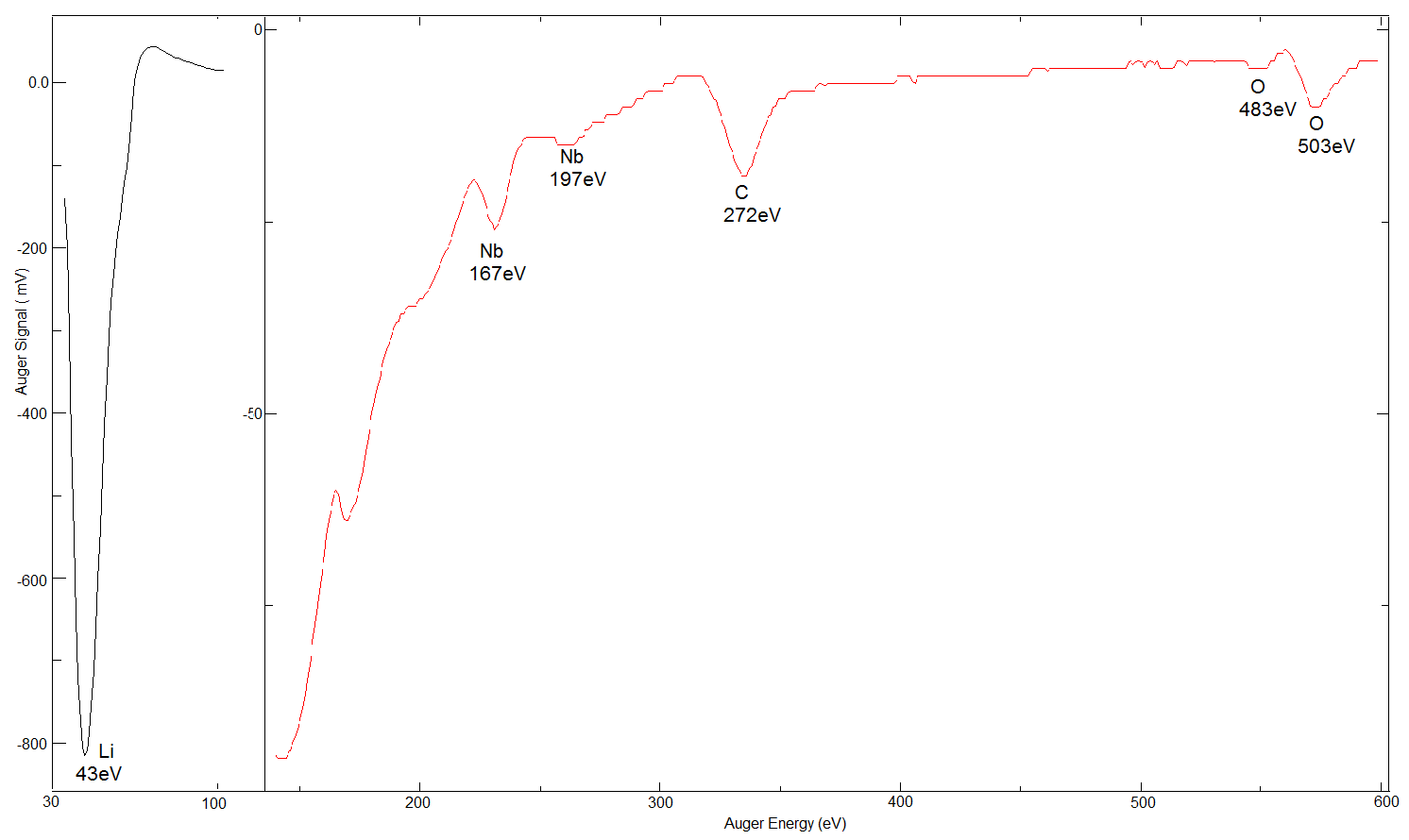

Stoich. LiNbO3 (0001) – AES Spectrum

Stoich LiNbO3 - AES Spectrum
LiNbO3 (0001) – AES Spectrum
