Crystal Substrates > LiNbO3 (0001) - Lithium Niobate Saw Grade

  • Material: LiNbO3 Saw Grade
  • Size: 10 mm x 10 mm x 0.5 mm
  • Orientation: (0001) with edge (11-20) (10-10)
  • Structure: Hexagonal
  • Lattice Constant: a=5.148 Å c=13.863 Å
  • Type/Dopant: Undoped
  • Growth Method: Czochralsky method
  • Melting Temperature: 1250 °C
  • Debye Temperature: 307.25 °C [Ref. 17]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
  • Model: BDL800IR
  • UHV Treatment: Annealing
  • Applications: Laser frequency doubling, nonlinear optics, waveguide-based optical devices, surface acoustic wave devices, memory units and neuromorphic systems, and more optical applications [Ref. 18].

LEED Patterns

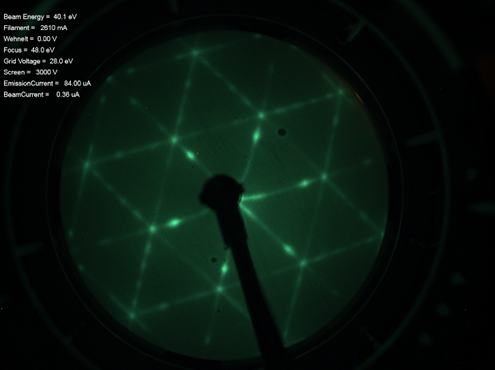

LiNbO3 (0001) - LEED Pattern 40 eV
LiNbO3 (0001) - LEED Pattern 40eV

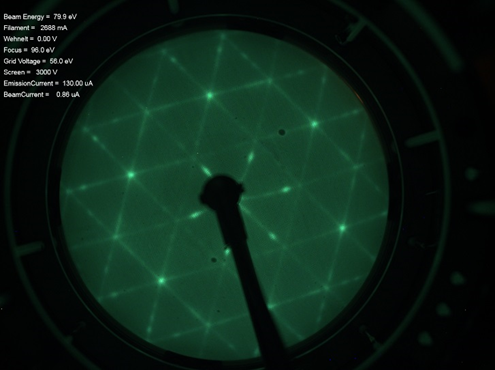

LiNbO3 (0001) - LEED Pattern 80 eV
LiNbO3 (0001) - LEED Pattern 80 eV

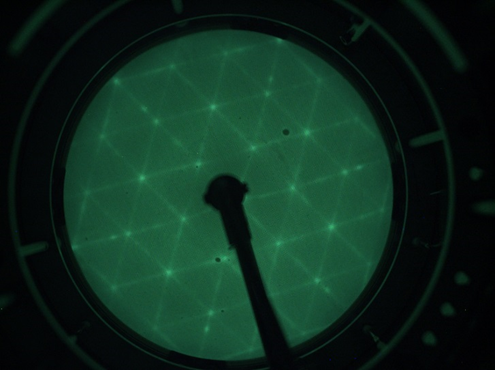

LiNbO3 (0001) - LEED Pattern 100 eV
LiNbO3 (0001) - LEED Pattern 100 eV

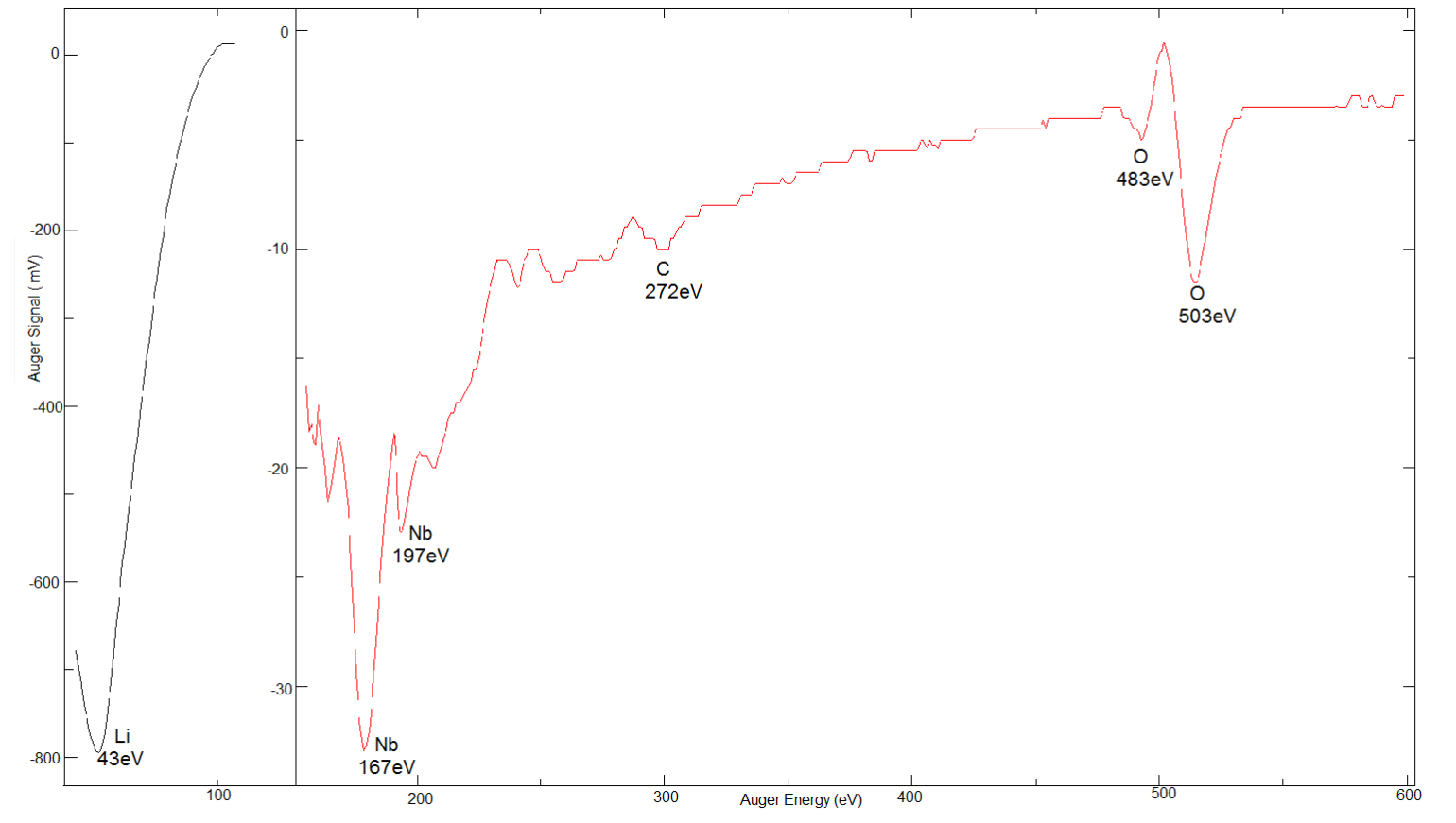

LiNbO3 (0001) – AES Spectrum

LiNBO3 Saw Grade- AES Spectrum
LiNbO3 (0001) – AES Spectrum
