Low Energy Electron Diffraction & Auger Electron Spectroscopy Data


Crystal Substrates > BP4 on Au (111) - BP4 on Gold

  • Material: BP4 on Gold
  • Size: 10 × 10 × 0.5 mm
  • Orientation: (111)
  • Structure: Cubic Close Packing
  • Lattice Constant: a = 4.08 Å
  • Type/Dopant:
  • Film Growth Method: Gas Phase Deposition
  • Melting Temperature: 1064 °C
  • Debye Temperature: (at 14GkPa) -104.15 °C ±18 °[Ref. 7]
  • Surface Debye Temperature: Unpublished
  • Characterization Tool: LEED-AES
  • Model LEED 800 MPC
  • UHV Treatment: Annealing at 90 °C (estimated temperature of sample) for 12 hours
  • Applications: Anti-inflammatory

Courtesy of M. Kazempoor and Dr. G. Pirug, Forschungszentrum Juelich, Germany.

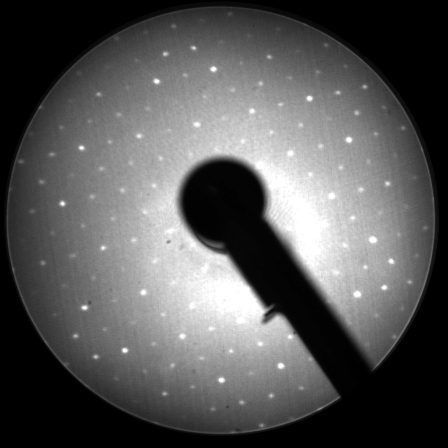

LEED Pattern after Deposition and Annealing

BP4 on Au (111) LEED Pattern 64 eV
BP4 on Au (111) LEED Pattern 64eV
