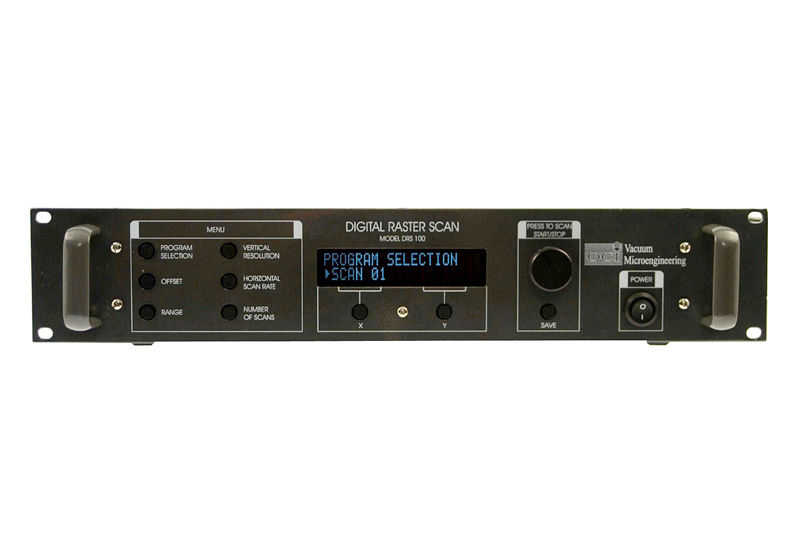

Digital Raster Scan: Model DRS-100

Digital Ion Sputter Gun Controller: IPS3-D
Digital Ion Sputter Gun Controller: IPS3-D

Digital Raster Scan is a user programmable controller used for X-Y deflection plates in electron and ion guns.

Available Settings of Selected Scan Area:

  • Range and Offset of X,Y
  • Horizontal Scan Rate
  • Number of Scan Lines

Monitoring:

  • Display: vacuum fluorescent display for functions
  • On-BoardAutomation: 20 pre-programmed operating programs and default settings program
  • Protection: short circuit protection

Brochure Download (PDF):

Download Digital Raster Scan DRS-100 Brochurepdf download icon


Specifications:

Digital Raster Scan Model DRS 100

Analog Outputs:

  • Horizontal range (X) up to 200V
  • Vertical range (Y) up to 200V
  • Horizontal offset (X) -100V +100V
  • Vertical offset (Y) -100V +100V
  • Vertical resolution up to 999 lines
  • Horizontal scan Rate up to 140Hz at X, Y range 2V

Monitoring:

  • Display: vacuum fluorescent display for functions
  • On-Board Automation: 20 pre-programmed operating programs and default settings program

Protection:

  • short circuit protection
